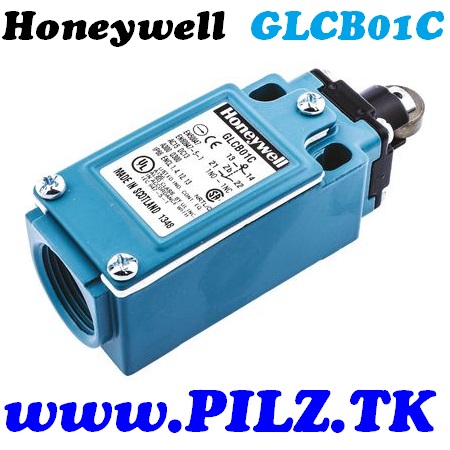

GLCB01C Honeywell IP66 Snap Action Limit Switch, Top Roller Plunger, Die Cast Zinc, NO/NC, 300V LiNE iD PILZ.TK

Limit Switches GLC & GLD

Small footprint switches designed for demanding industrial applications
Available in heavy duty metal or self-extinguishing plastic bodies
IP67 protection rating – plastic products
IP66 protection rating – metal products
SPDT snap action positive break switches with PG13.5 conduit openings
Mounting holes are 20-22 mm dual centre
Mini DIN

Approvals

UL/CSA Listed for USA/Canada, CE

Honeywell (GLS) Global Limit Switches

Standard size die - cast zinc body limit switches suitable for most industrial applications with bifurcated contacts for switching wide current and voltage requirements with galvanically isolated contacts for switching different polarities between circuits. The contacts have an independently tested forced disconnection mechanism with conformity to EN 50947-5-1 (IEC 947-5-1). They are sealed to IP67 with an operating temperature range of -25 to +85°C and shock resistant to 50 g (when actuator not fitted).

The Global (GLS) range provides a comprehensive selection of limit switches for industrial applications. This range is the miniature standard (EN 50047) metal and plastic versions plus a compact metal three conduit entry style. They feature bifurcated contacts for switching wide current and voltage requirements and have galvanically isolated contacts for switching different polarities between circuits. They conform to EN 50947-5-1 (IEC 947-5-1) for safety switches with a forced disconnect mechanism, independently tested.

Approvals

UL/ UL listed for Canada
